Open Cell

Stalen_damwanden_vlakke_damwand

Cellulaire damwanden

Een heel handige ontwikkelde constructie door het Amerikaanse ingenieursbureau PND is de cellulaire gevulde damwand. Van bovenaf gezien is hebben de cellen allemaal een U vorm.

Open Cell-technologie vormt een unieke oplossing voor bouwwerken aan de waterkant die tegen de LAAGSTE KOSTEN de HOOGSTE PRESTATIES biedt.

Deze open Cell vlakke damwand is een heel handig alternatief bij het maken van bijvoorbeeld kademuren als er grote water- en/of grondkerende constructies gemaakt moeten worden. Er is bij deze muren een grote inbeddingsdiepte nodig en het materiaal / de constructie is gevoelig voor corrosie. De Cellulaire damwand van ‘Open Cell’ is hier het slimme alternatief!

Wilt u de brochure downloaden over de Open Cell Technologie? Dat kan:


open cell cellulaire damwand stalen damwanden

The sheet piles consist of flat sheet piles of type PS 31 or PS 27.5 which are driven along the front to form an arch face and transfers its force to the vertical anchor walls, which are perpendicular to the front wall. This method requires only minimal embedment in order to achieve the (significant) containing height. The flat sheet piles from Gerdau Ameristeel are the recommended material for these walls, because besides having the required interlock tolerances of around 10°, they also have the required interlock strength. (The interlocks of the sheet piles are all under strain of tension.)

Open Cell constructie stalen damwand

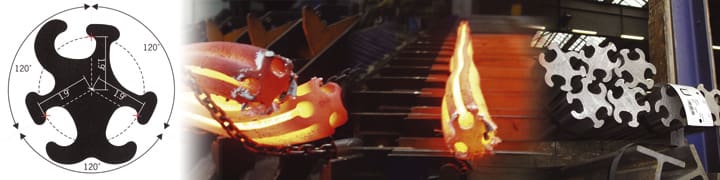

The connection between the curved arch wall and the vertical anchor wall is achieved by the extremely solid corner pile section SWC 120©. This section was developed especially for Open Cell and is rolled from a single piece, without welding. This creates a very solid corner pile section which is necessary in order to transfer the high forces.

An Open Cell™ construction is highly suitable for large retaining constructions with large (uneven) loads. The system of forces (the sheet piles are under strain of tension instead of strain of bending) makes corrosion a different story altogether. The swift construction time and absence of an anchoring wall particularly make the system extremely economic when compared with existing systems.


In brief, Open Cell™ is the ideal solution for constructions that have to fulfil and/or resist:
• High top load • Corrosion-resistant
• Heavy ice load • Insusceptible to erosion
• Large retaining heights • Earthquakes
• Minimum embedment • Poor soil condition
